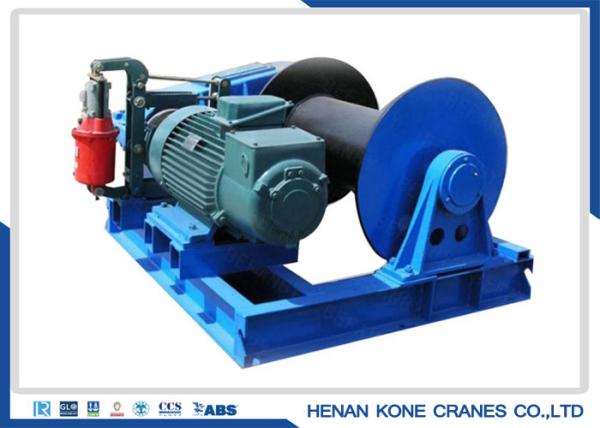

1000Kg-12000Kg Mini Electric Wire Rope Hoist/Lifting Hoist Winch

Wire rope or chain hoist, lifting or pulling heavy loads of small light lifting equipment with the reel winding, also called electric hoist winch. Can hoist vertical lifting, horizontal or inclined dragging weight. Hoist is divided into manual hoist, electric hoist and hydraulic hoist three. Now electric winding machine is usual. It can be used alone. Because of simple operation, large amount of rope, displacing the convenient and widely used. Mainly used in construction, water conservancy, forestry, mining, port materials such as lifting or dragging.

JD type electric hoist winch is a kind of small size, light weight, flexible operation, safe and reliable, durable electric crane. Widely used in buildings, bridges, metallurgy, mining and other enterprises in the construction site, in addition to the machine is widely used in material lifting and large hoisting for winding, or on a slope or flat drag a variety of materials and equipment.

Rated pull of rope hoist factory can produce from 5 KN-250 KN.

Attention in the use of electric hoist winch:

1, the wire rope on the drum should be arranged neatly, if found overlap and oblique round, should stop the re arrangement. Strictly prohibit the use of hand, foot pull on the wire rope. Wire rope is not fully released, at least three laps should be retained

2. The wire rope must not be knotted and twisted. It should be replaced when the line is broken more than 10% in one pitch

3, in the operation, no one shall cross the wire rope, the object lifting, the operator shall not leave the winch. Rest objects or hanging cage should be ground

4, in the operation, the driver and the signal should be closely cooperate, obey the signal unified command

5, in case of power failure, the power supply should be cut off and the lifting material will be lowered to the ground

6, the work should obey the command signal, the signal is unknown or may cause accidents should be suspended operation, to clarify the situation can continue to work

7, a sudden power outage during the operation, should immediately pull the knife, the cargo down.

8, after the completion of the work, the material should be ground and shut the electric box

9 wire rope in the process of use and mechanical wear. Spontaneous corrosion of local damage is inevitable, should be interval time brushing oil protection

10. Never overload exceeds the maximum bearing tonnage.

11 the use of the process should pay attention to not knot, flattening, arc injury. Erosion of chemical media

12 not directly lifting high temperature objects, for angular objects should be protective plate

13 the steel wire rope should be checked frequently during use, and the scrap standard should be scrapped immediately

Henan Kone Crane Co., Ltd. is located in the Changyuan Crane Industrial Park, Henan Province, known as the "Hometown of Cranes in China". The company has a registered capital of 128 million yuan. It is the hometown of Chinese cranes-Changyuan, which integrates R&D, design, manufacturing, sales, A modern crane manufacturing enterprise integrating installation, service, import and export. The main business scope includes: bridges, gantry cranes, explosion-proof cranes, metallurgical cranes, port cranes, portal cranes, beam lifting machines, bridge erecting machines, robots, electric hoists , Steel structure, mechanical and electrical products, crane parts and related products design, research and development, manufacturing, sales, installation, transformation, maintenance, leasing; engaged in the import and export of goods and technology.

Henan Konecranes Company is the vice chairman unit of the Executive Committee of Changyuan City Federation of Industry and Commerce. The company covers an area of ​​160,000 square meters, a total plant area of ​​9,800 square meters, and an office area of ​​1,100 square meters. There are currently 36 engineers, including 9 senior engineers. 27 people and engineers; 78 technicians and 726 employees; the company has six departments including finance department, general office, sales department, technology department, production department, quality inspection department, single beam, double beam crane, electric hoist, etc. Multiple workshops and multiple installation teams; with various processing equipment, they can independently complete turning, milling, planing, grinding, drawing, boring, rolling, drilling, stamping, cutting, bending, coiling, riveting, testing and heat treatment Wait for the entire process.

Quality determines the future, science and technology win word of mouth, and service creates beauty. Henan Konecranes Company is a high-tech enterprise in Henan Province. We continue to carry out technological innovation, develop new products, and improve the technological content of products to meet the market's demand for higher-end lifting equipment. On the basis of digesting and absorbing the advanced design concepts and manufacturing technology of domestic and foreign cranes, the electric hoist, single and double beam cranes are remodeled and designed to be in line with similar international products. With scientific management system, automated office system, and strong With its production capacity, advanced testing methods and strong sales network, we have produced a series of products with high quality and reasonable prices to serve the domestic and foreign markets. Products are widely used in machinery manufacturing, iron and steel metallurgy, nuclear energy industry, mining, water conservancy and hydropower, roads and railways, electric energy, automobile manufacturing, petrochemicals, port logistics, shipbuilding and other material handling fields. Best-selling all over the country, some products are exported to many countries and regions such as Britain, Russia, Turkey, Brazil, Vietnam, Thailand, India, Iran, Pakistan and so on.

A hard work, a gain, in the future journey, Henan Konecranes will adhere to the enterprise spirit of "sincerity, integration, enterprising, and win-win", and adhere to the "careful manufacturing, continuous improvement, pursuit of excellence, and customer satisfaction". Quality policy, follow the principle of honest management, absorb the essence of domestic and foreign management, introduce first-class talents, implement first-class management, build first-class products, build first-class enterprises, and wholeheartedly cooperate with friends from all walks of life at home and abroad to seek common development and achieve mutual benefit and win-win. Build a beautiful China to make our contribution.
