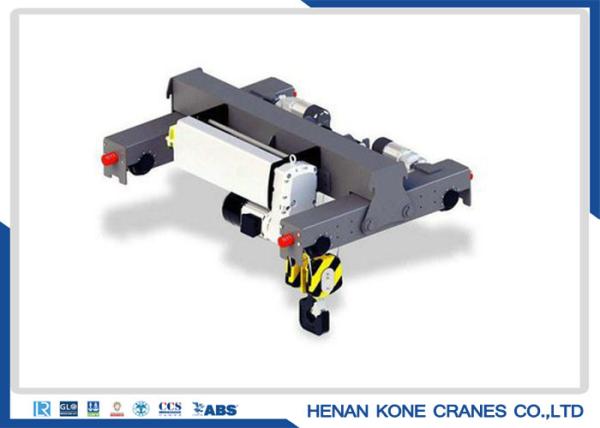

    100 Ton Explosion Proof Electric Hoist , Electric Ladder Hoist

    High Performance CE Certificated European Electric Ladder Hoist


    The explosion-proof electric hoist is the most safe and reliable electric hoisting equipment in the future market. The single type

    of explosion-proof motor can be divided into: hyji type metallurgical electric hoist (Metallurgical wire rope electric hoist),

    hyjjii type metallurgical electric hoist (Metallurgical wire rope electric hoist), HB (BCD) type explosion-proof electric hoist,

    HB (as) type explosion-proof electric hoist and ash type electric hoist according to the different places of application Movable

    hoist, explosion-proof electric chain hoist, etc.


    What is the function of electric hoist?

    1. HC Electronic Hoist is a small-sized lifting equipment.

    2. HC Electronic Hoist has the advantages of light weight, small size, compact structure, more

    varieties of different specifications, running smoothly.

    3. HC Electronic Hoist can do it in the same plane as straight, curved, recycling use of aerialorbit, and can also be used in crane such as steel electric single track beam, manual single

    beam, bridge, suspension, cantilever, gantry etc.

    4. HC Electronic Hoist is widely used in factories, mines, harbors, terminal, ware houses and

    cargo storage areas.

    5. HC Electronic Hoist is essential in raising working efficiency and improving working conditions.


    What parameters do you want to know?

    1. Lifting Weight:16Ton~100Ton

    2. Lifting Height:6m~48m

    3. Power:Three-phase ac 380 v, 50 HZ

    4. Lifting Speed:2m/min~6m/min

    5. Running Speed:1~20m/min

    6. Lifting Motor:Motor load keeping rate is 25%, Safe and reliableClass B or Class F insulation,Motor protection grade IP44 / IP54

    7. Wire Rope:To adopt GB / T 20118-2006 (6 * 37 + 1) lifting wire rope, to ensure durable using.


    Which size do you need?


    TypeHCHC(A2D)
    Lifting weight t162025323656100
    Lifting height m9~489~309~306~246~246/9/12/186/9/12/18
    Hoisting speed m/min3.5~6432
    Running speed m/min205~201~20
    5~20
    Steel wire rope type6×37+1
    H beam orbit model45a-63c45a-63c50a-63c50c-63c50c- 63c
    Minimum curvature radius3.0/3.6/4.83.2/3.7/4.93.2/3.8/53.3/3.8/5
    PowerThree-phase ac 380 v, 50 HZ
    Working systemIntermediate M3
